Especially on your power line you might want thicker traces by default. In the Edit menu goto Net classes:
Add an extra class PWR and set the default width.
In the properties of the power net set the Net Class to PWR.
On the PCB the trace will get the new default width when you route it.
Till Next Time

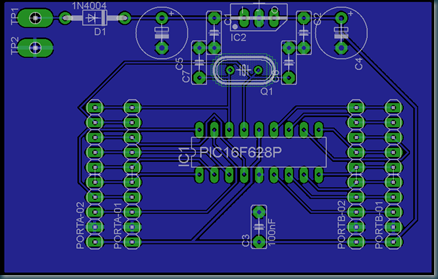

One of the basic design rules is to make the ground plane as large as possible. In Eagle you can to this very easily with the polygon function:
Step 1 Change the defaults:
Step 2 draw a polygon around the area you want to place the ground planes:
Step 3 rename the polygon to the net name off your ground net (in this case VSS) :
Step 4 press the ratsnest button:
Step check the result:
Till Next Time
By default Eagle autroutes the PCB on two layers. If you don’t have the equipment to etch or mill to layers try this.
On the autoroute General tab set the top to N/A and the bottom layer to *
Till Next Time
When routing the board you sometimes want to start from scratch. One way of doing it is to enter RIPUP; (semi colon) in the command bar:
Till Next Time
Hi,
I started this new 101 blog will working with the PCB design program Eagle from CadSoft.
Although I’m not an electrical engineer, I’m a fully licensed ham operator (PH9Z), with an intressed in electronics.
This blog is mainly intended for ‘newbie’ Eagle users like myself
Till Next Time
